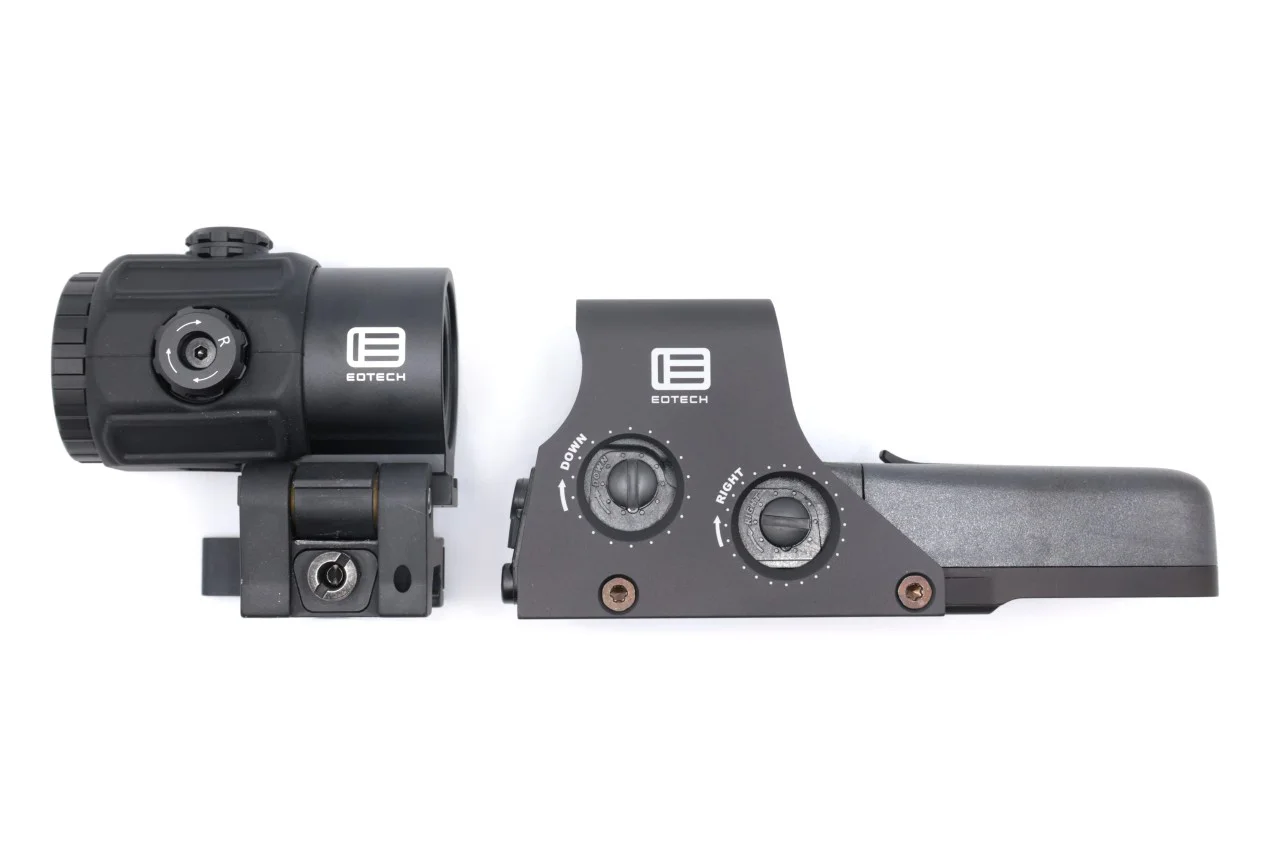

Product information "IEA HHS Kit EOTECH 512.A65 + G43"
The IEA HHS Kit consists of the EOTECH 512.A65 holographic sight combined with the compact G43 magnifier, offering a versatile solution for both close-range and mid-range applications.
Important Notes on Our EOTECH Products
• Packaging is opened in advance to record serial numbers
• The battery is pre-installed from the factory
• Light mounting marks may be visible due to manufacturer testing
The EOTECH HHS VI is a combination of an EXPS3-2 (black) and a G43 magnifier (black).
⚠ Note: Image may differ – the delivered magnifier is the G43
(The G43 is slightly shorter than the G33)
EXPS3-2 Holographic Sight
The EXPS3 is one of the most compact and user-friendly models in the Holosight series.
It is smaller and lighter than previous models and operates with a single CR123 battery.
Thanks to the optimized battery configuration, more space is available on the Picatinny rail than ever before. Battery life is approximately 600 hours.
The reticle is parallax-free, allowing for fast and precise target acquisition.
The integrated Quick-Release (QD) mount is repeatable and raises the sight line by approx. 7 mm.
Optimized Design
Compared to the XPS3-0, the controls have been moved to the side, allowing magnifiers such as the G30 / G33 / G43 / G45 to be mounted directly behind the sight.
• Required rail space: only 67 mm
• Ideal for modern setups with magnifiers
Important Notes on Our EOTECH Products
• Packaging is opened in advance to record serial numbers
• The battery is already installed from the factory
• Light mounting marks may be visible due to manufacturer testing
Specifications – EXPS3-2
Reticle / Speed Ring
65 MOA outer ring (approx. 30 cm at 50 m) for fast target acquisition
Reticle / Dot
2 × 1 MOA dots (approx. 3 cm at 100 m)
Reticle Type
Circle-Dot
Reticle Color
Red
Mount
Picatinny mount
Night Vision Compatible
Yes
Water Resistance
Submersible up to approx. 10 m
Sealing
Fog-resistant, hermetically sealed
Protection
Protective hood made of hard-anodized, matte black aluminum
Brightness Levels (Night)
10 levels for night vision devices
Brightness Levels (Day)
20 levels
Auto Shut-Off
Automatic shut-off (programmable)
Adjustment
0.5 MOA per click at 100 m
Adjustment Range
± 40 MOA
Power Supply
CR123 battery (not included)
Low Battery Indicator
Warning for low remaining power
Dimensions
91 × 60 × 71 mm
Weight
317 g
EOTECH G43 Magnifier (3x)
Performance & Features
More compact – even lighter!
The G43 is the successor to the proven G33 magnifier and offers the same performance in a more compact design.
The Flip-to-Side (STS) mount allows for a fast transition from 3x magnification to 1x, ideal for dynamic shooting scenarios.
• Tool-free vertical and horizontal adjustments
• Precise alignment of the reticle to the center of the image
• Wide field of view
• Adjustable diopter for sharp focus
The G43 is compatible with all EOTECH HWS models.
Specifications – G43
Magnification
3x
Eye Relief
64 mm
Field of View
7.5°
Optical Axis Height
39 mm (46 mm with included 7 mm riser)
STS (Flip-to-Side)
Yes
Water Resistance
Submersible up to approx. 10 m
Sealing
Fog-resistant, hermetically sealed
Housing
Hard-anodized, matte black aluminum
Length
78 mm
Weight
332 g
Mount
QD lever, Picatinny rail
Pre-Order
Item currently not available? Pre-ordering is worth it!
With your pre-order, you will automatically be added to our waiting list.
As soon as the item becomes available, you will be automatically notified.
The semi-automatic rifle in AR-10 design combines the proven and reliable G36 gas piston operating system with the powerful .308 Winchester caliber. The rifle is fully ambidextrous and ideally suited for a wide range of static and dynamic rifle disciplines.
Features
• Slim Line handguard with HKey interfaces
• Transparent polymer magazine available in 2-, 5-, 10-, or 20-round versions
• Ambidextrous bolt catch with protective barrier against accidental activation
• Ambidextrous magazine release
• Length-adjustable Slim Line stock with 5-position adjustment
• Hard chrome-lined barrel
• Available in Black or RAL8000
Technical Specifications
General
Caliber
.308 Win
Operating Principle
Gas-operated
Magazine Capacity
2 / 5 / 10 / 20 rounds
Dimensions
Length min./max.
Approx. 905 / 985 mm
Width
Approx. 78 mm
Height
Approx. 197 mm
Sight Radius
Approx. 411 mm
Weight
Weapon Weight
Approx. 4.45 kg
⚠️ Product image shows the 16.5" version. The delivered rifle features the 20" barrel version.
⚠️ Magazines with capacities greater than 10 rounds are only available to persons legally authorized to purchase them.
Important Information Regarding Firearm Orders
Please note the following:
• Firearm orders can only be placed through our online shop
• During the checkout process, please upload the following documents:
Valid hunting license (Jagdschein)
Firearms ownership card (WBK), including pre-entry if applicable
NWR IDs (see master data sheet)
Valid ID card or passport
All documents must be:
• Valid
• Complete (front and back side)
• Clearly legible
After your order has been placed and the item is available, you will receive a proforma invoice. Once payment has been received, we will coordinate the delivery date with you. Alternatively, personal pickup is possible.
⚠️ Please ensure all required pre-entries are available where applicable.
