NEW 2026 – Ultra-Compact FFP Optic

The EOTECH Vudu 4–12x36 FFP is an extremely compact first focal plane riflescope with an overall length of just 7.1 inches (approx. 18 cm). It is specifically designed for short weapon platforms with limited rail space or for use in combination with clip-on night vision and thermal devices.

Constructed from high-strength aircraft-grade aluminum, the optic is built for rugged, duty-grade use while maintaining a lightweight profile of approx. 16.9 oz (480 g).

With a 4–12x variable magnification and a 36 mm objective lens, it is perfectly suited for mid-range hunting and precision shooting applications.

Performance & Features

The first focal plane (FFP) reticle maintains its proportions across the entire magnification range, enabling accurate ranging and holdovers in MRAD at any zoom level.

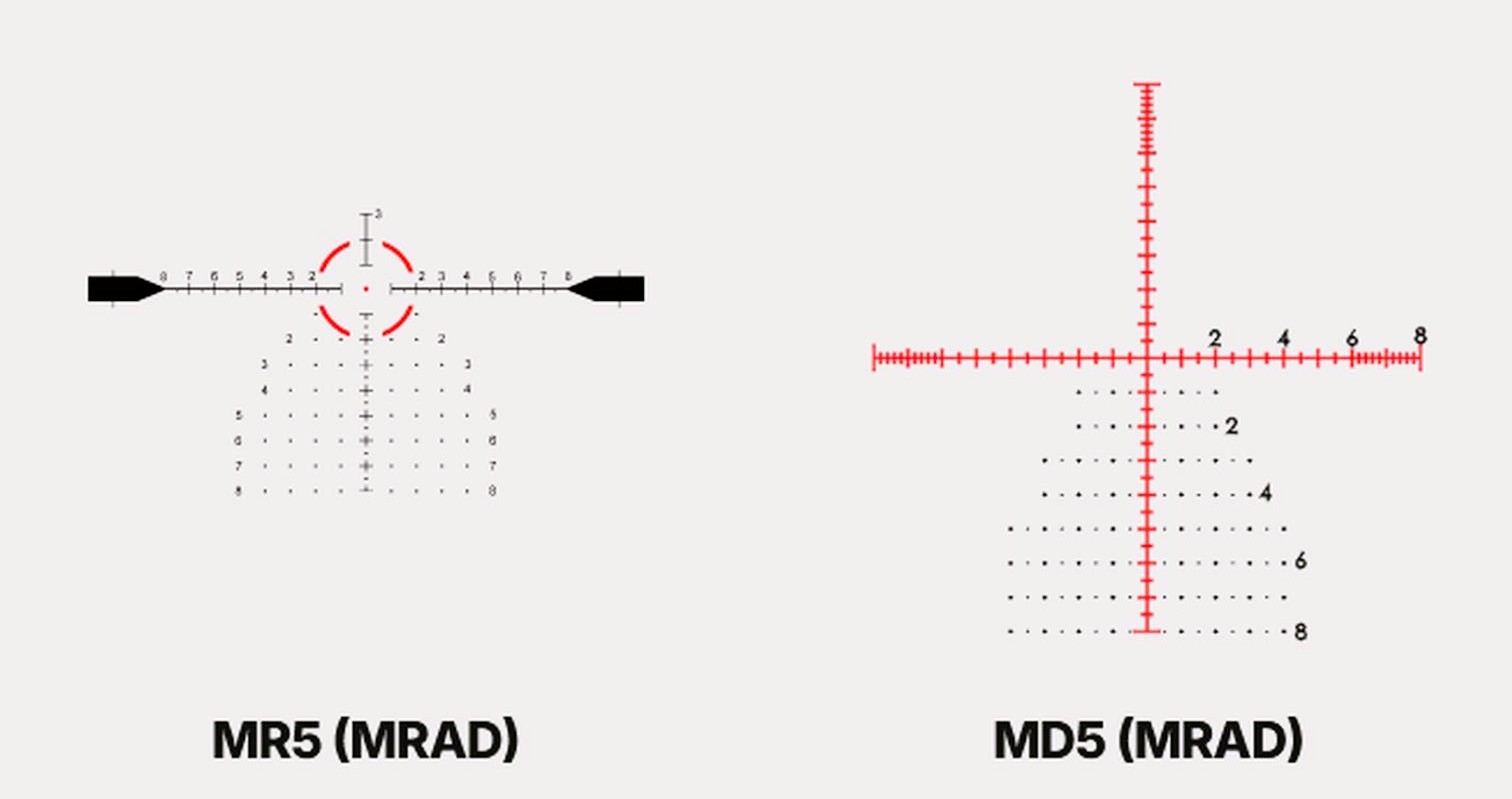

Available illuminated reticles (including MR5 and MD5) are optimized for precision holds and rapid target acquisition.

• 10 brightness settings with intermediate OFF positions
• Side-mounted illumination dial (left side) for intuitive operation
• Fast selection of preferred brightness level

Powered by a CR2032 battery, the illuminated reticle offers approx. 300 hours runtime, depending on brightness level and environmental conditions.

Compact Tactical Design

The capped MRAD turrets provide precise 0.1 MRAD click adjustments for elevation and windage.
The low-profile design reduces the risk of snagging on gear.

• Fog-resistant internal construction
• Waterproof and shockproof design
• Built for reliable performance in harsh environments

Integrated Mounting System

To minimize overall length, EOTECH reduced the traditional tube surface and instead integrated a machined mounting interface on the underside of the housing.

• Compatible with the included EOTECH mount
• Also compatible with common Mini-ACOG mounts
• Direct mounting on MIL-STD-1913 / Picatinny rails

Optional Red Dot Integration

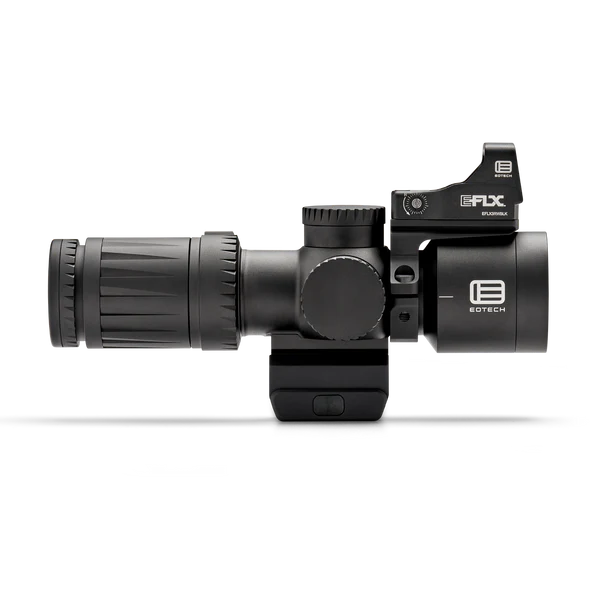

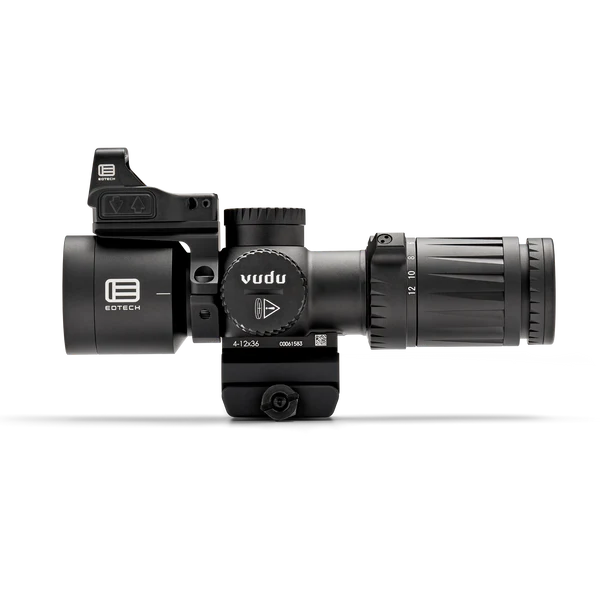

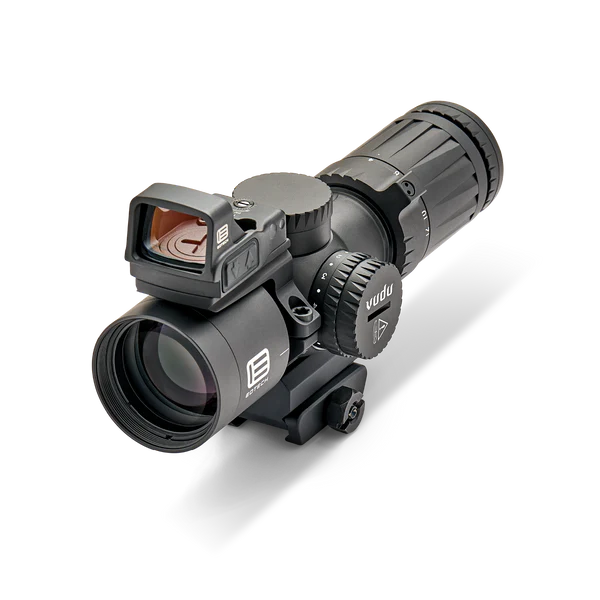

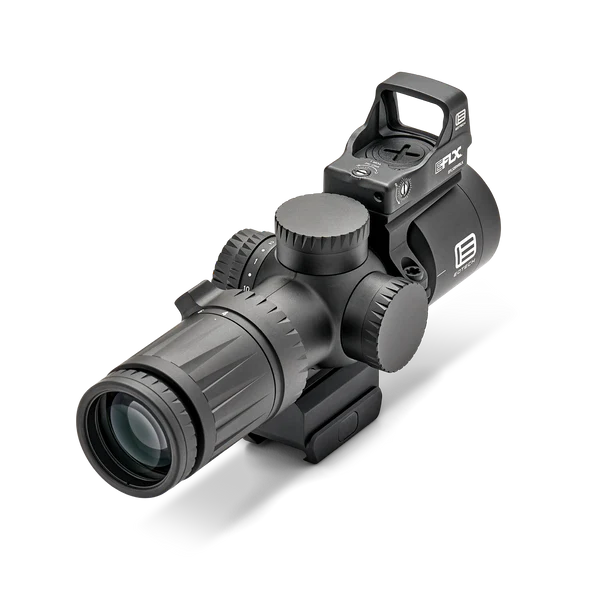

Factory configurations are available with an EFLX micro red dot mount:

• Mounting position at 12 o’clock or 45° offset
• Ideal for rapid transition to close-range targets

Technical Specifications

Magnification Range
4–12x variable

Objective Lens Diameter
36 mm

Focal Plane
First Focal Plane (FFP)

Reticle Options
Illuminated tactical reticles (e.g. MR5, MD5) with MRAD subtensions

Reticle Illumination
Red, 10 brightness levels with OFF positions between settings

Controls
Side-mounted illumination dial, large magnification ring, diopter adjustment

Turrets / Adjustment
Capped elevation and windage turrets, 0.1 MRAD per click

Housing Material
Aircraft-grade aluminum, ultra-compact design

Length
Approx. 7.1" (18 cm)

Weight
Approx. 16.9 oz (480 g)

Power Supply
1× CR2032 battery, approx. 300 hours runtime

Mounting Interface
Integrated base compatible with EOTECH mount and Mini-ACOG mounts (Picatinny)

Optional Red Dot Mount
EFLX mounting option at 12 o’clock or 45° (depending on configuration)

Environmental Protection
Fog-resistant, waterproof, shockproof

Availability
Planned availability from Q2 2026

Important Notes on Our EOTECH Products

• Packaging is opened in advance to record serial numbers
• The battery is pre-installed from the factory
• Light mounting marks may be visible due to manufacturer testing
