EOTECH 558.A65

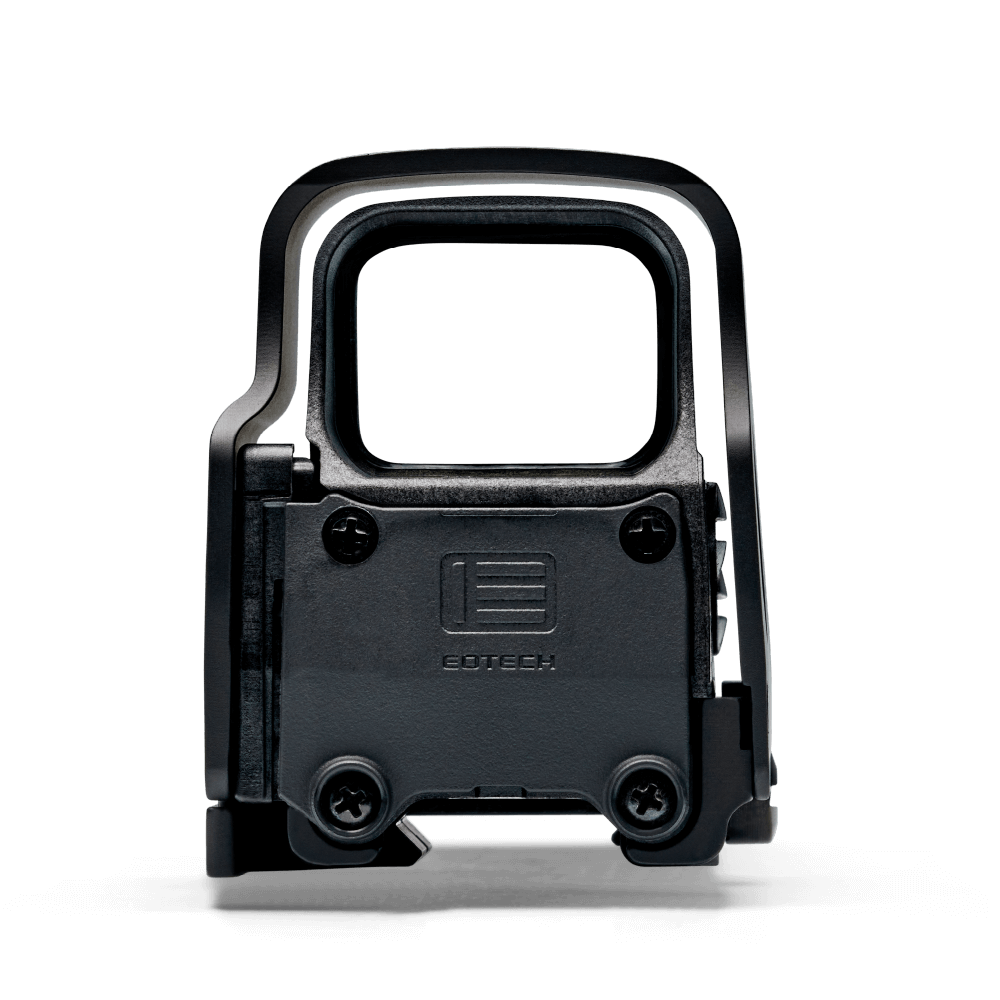

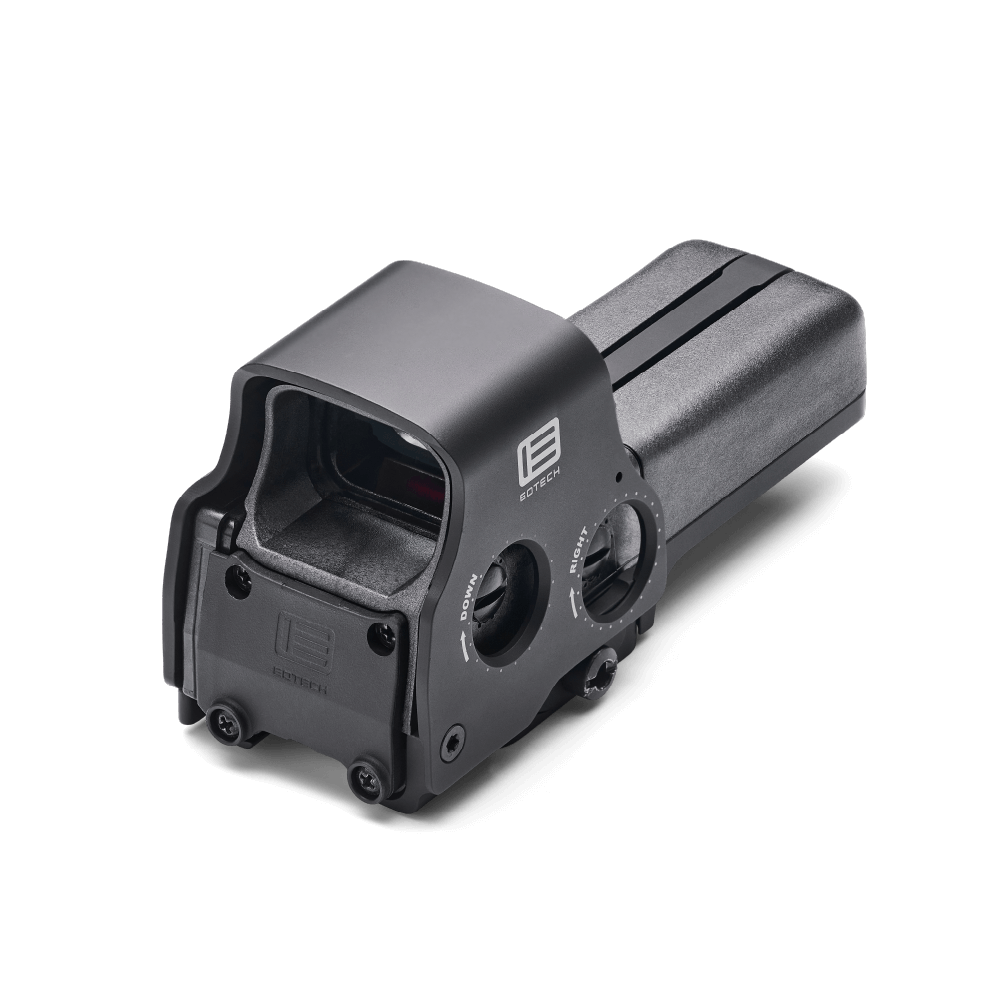

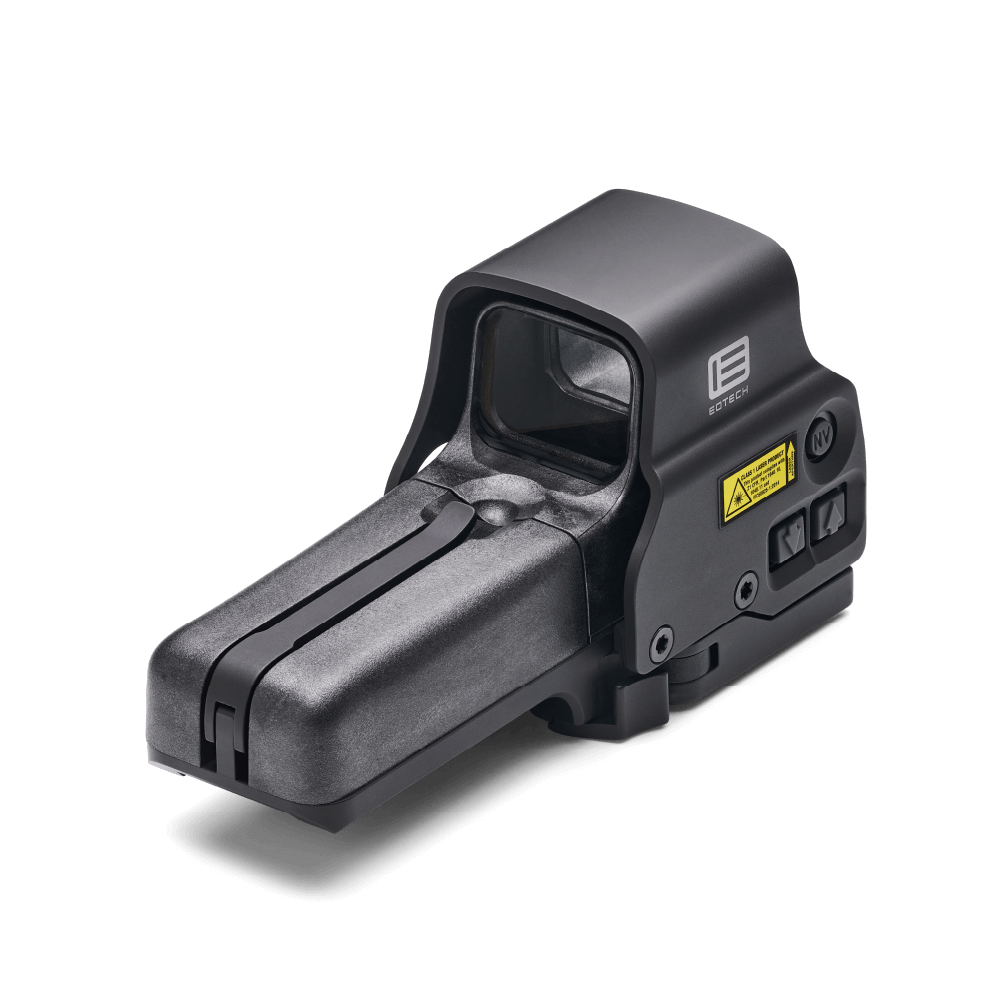

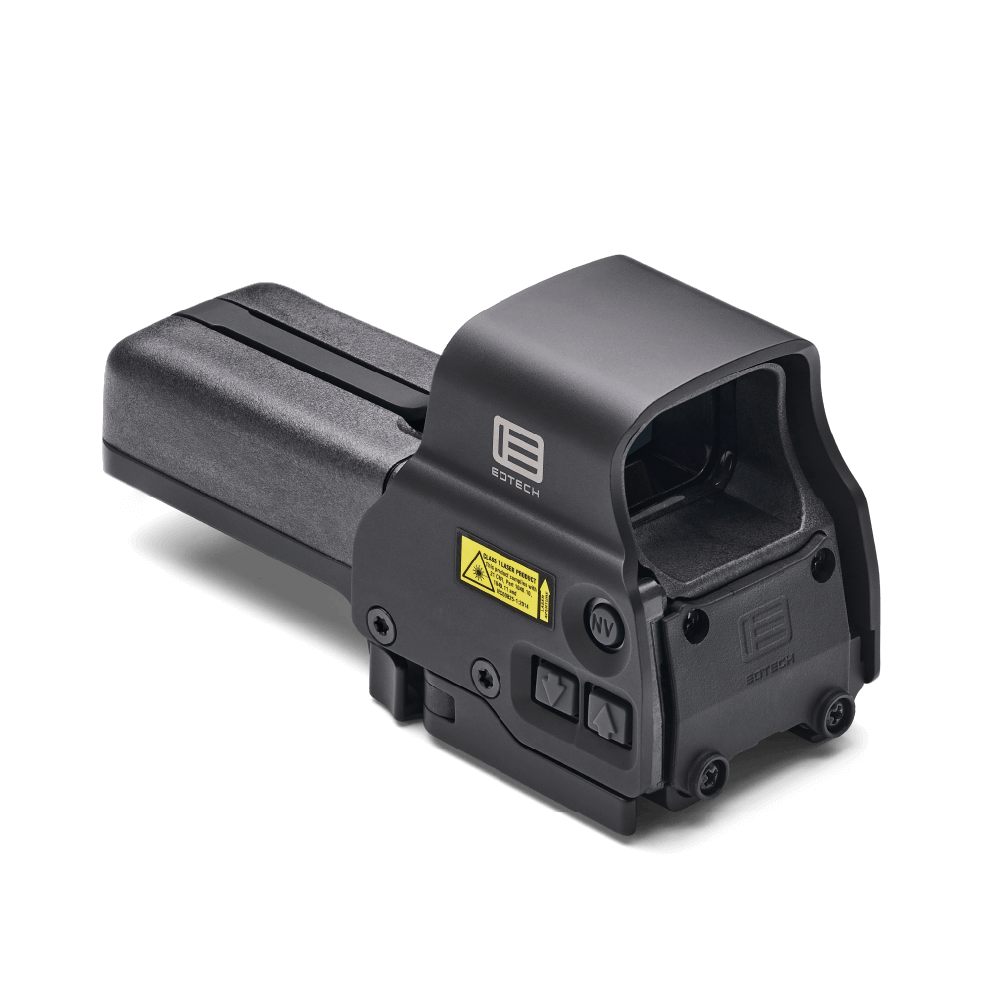

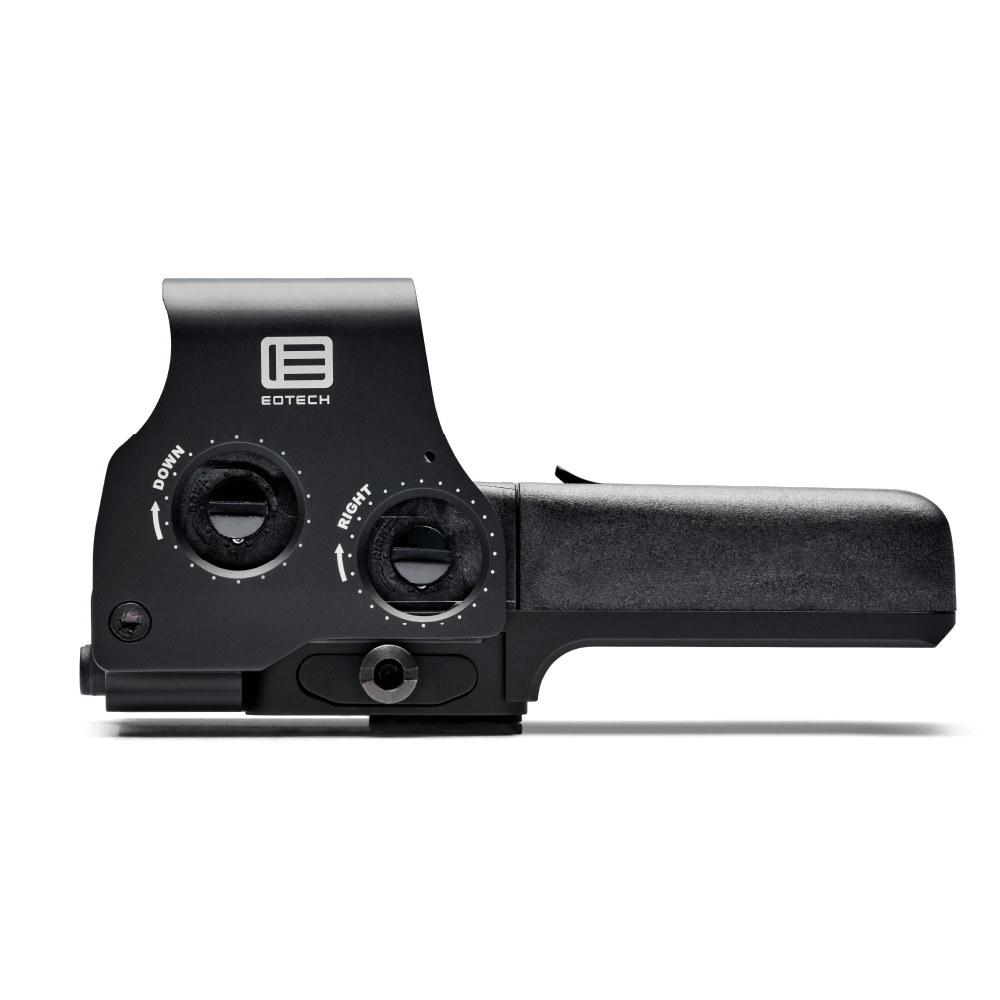

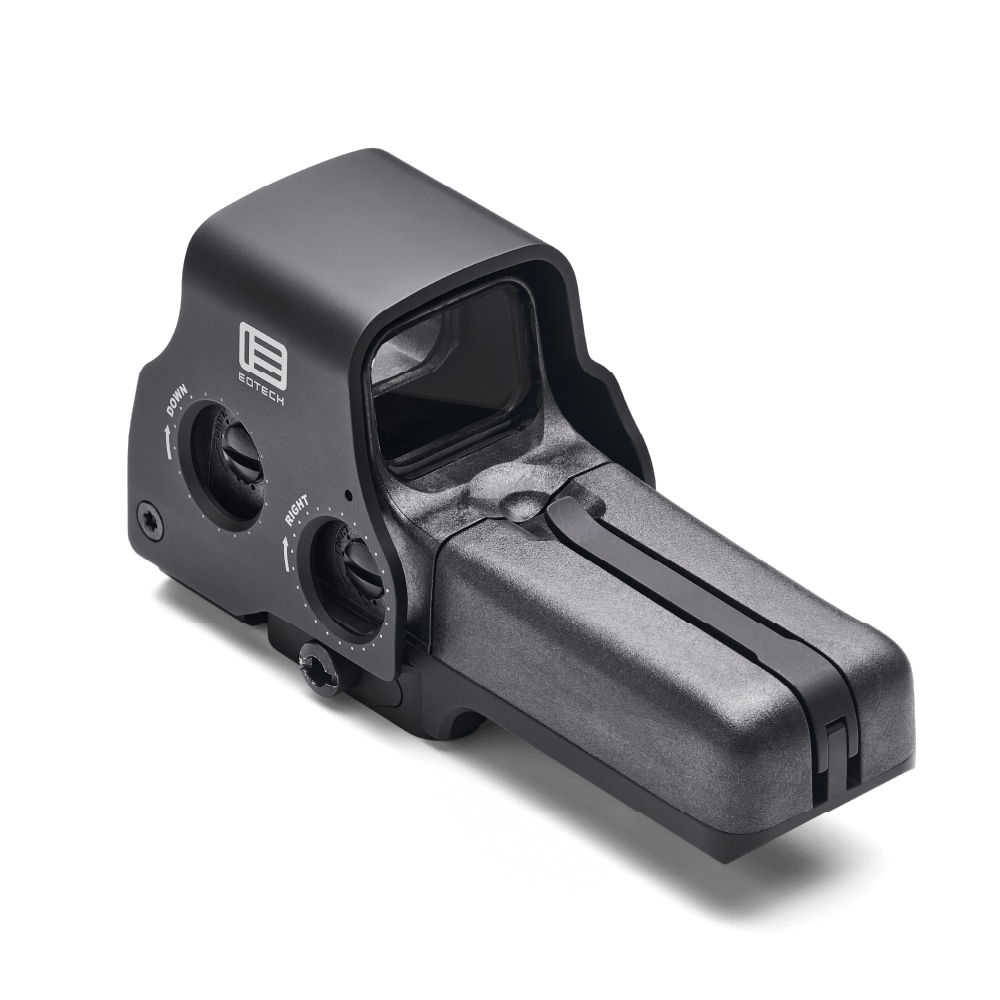

EOTECH 558 A65 Holographic Sight
The EOTECH 558 A65 is a holographic reflex sight with integrated night vision (NV) capability, making it ideal for use with night vision devices.
It is compatible with Gen 1–4 night vision systems and delivers reliable performance even in demanding environments.
These holographic sights were primarily developed for fast target acquisition and precise shot placement – ideal for applications such as driven hunts.
Features & Benefits
Thanks to the large viewing window and slim housing, the sight allows for both-eyes-open shooting without restricting the field of view.
Advantages of shooting with both eyes open:
• True 3D perception of the target
• Up to 30% improved overall image
• Better tracking of moving targets (e.g. during hunting scenarios)
Night Vision & Application
The EOTECH 558 A65 is optimized for use with head-mounted night vision goggles or monoculars.
Always comply with applicable firearms and hunting laws.
Mounting & Design
The integrated Quick-Release (QD) mount is repeatable and raises the sight line by approx. 7 mm.
Compared to the 512 A65, the controls have been moved to the side, allowing magnifiers such as the G33 to be mounted directly behind the sight.
• Compatible with Picatinny (MIL-STD-1913) and Weaver rails
Important Notes on Our EOTECH Products
• Packaging is opened in advance to record serial numbers
• The battery is already installed from the factory
• Light mounting marks may be visible due to manufacturer testing
Technical Data
Reticle / Speed Ring
65 MOA outer ring for fast target acquisition
Reticle / Dot
1 MOA dot (approx. 3 cm at 100 m)
Reticle Type
Circle-Dot
Reticle Color
Red
Night Vision Capability
Yes (IR levels available)
Water Resistance
Submersible up to approx. 3 m
Sealing
Fog-resistant, hermetically sealed
Protection
Protective hood made of hard-anodized, matte black aluminum
Brightness Levels
Up to 30 levels (including night vision settings)
Auto Shut-Off
Automatic shut-off (programmable)
Adjustment
1.25 cm per click at 100 m
Adjustment Range
± 40 MOA (model-dependent up to ± 65 MOA)
Power Supply
2 × AA batteries (not included)
Battery Life
Approx. 600 hours (up to 1000 hours with lithium batteries)
Low Battery Indicator
Warning for low remaining power
Dimensions
approx. 140–143 × 51–56 × 64–71 mm
Weight
approx. 312–377 g
Mount
Picatinny / Weaver mount
Design
Encased
